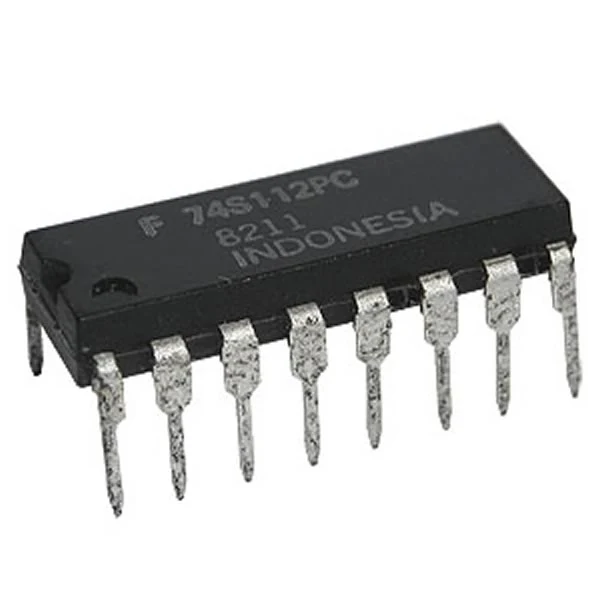

A10216A - (Pkg 2) Fairchild 74S112PC Negative-Edge Triggered J-K Flip-Flop
This device contains two independent negative-edge-triggered J-K flip-flops with complementary outputs. The J and K data is processed by the flip-flops on the falling edge of the clock pulse. The clock triggering occurs at a voltage level and is not directly related to the transition time of the negative going edge of the clock pulse. Data on the J and K inputs can be changed while the clock is HIGH or LOW without affecting the outputs as long as setup and hold times are not violated. A low logic level on the preset or clear inputs will set or reset the outputs regardless of the logic levels of the other inputs.
16 pin DIP. Manufactured by Fairchild.
Sold in a package of 2.
16 pin DIP. Manufactured by Fairchild.
Sold in a package of 2.
$0.73
Original: $2.10
-65%A10216A - (Pkg 2) Fairchild 74S112PC Negative-Edge Triggered J-K Flip-Flop—
$2.10
$0.73
Description
This device contains two independent negative-edge-triggered J-K flip-flops with complementary outputs. The J and K data is processed by the flip-flops on the falling edge of the clock pulse. The clock triggering occurs at a voltage level and is not directly related to the transition time of the negative going edge of the clock pulse. Data on the J and K inputs can be changed while the clock is HIGH or LOW without affecting the outputs as long as setup and hold times are not violated. A low logic level on the preset or clear inputs will set or reset the outputs regardless of the logic levels of the other inputs.
16 pin DIP. Manufactured by Fairchild.
Sold in a package of 2.
16 pin DIP. Manufactured by Fairchild.
Sold in a package of 2.
