A10874 - SN74HC273N Octal D-Type Flip-Flops w/Clear (TI)

These circuits are positive-edge-triggered D-type flip-flops with a direct clear (CLR)\ input. Information at the data (D) inputs meeting the setup time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not related directly to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input has no effect at the output.

Features:
Wide Operating Voltage Range of 2 V to 6 V
Outputs Can Drive Up To 10 LSTTL Loads
Low Power Consumption, 80-?A Max ICC
Typical tpd = 12 ns
?4-mA Output Drive at 5 V
Low Input Current of 1 ?A Max
Contain Eight Flip-Flops With Single-Rail Outputs
Direct Clear Input
Individual Data Input to Each Flip-Flop

Applications:
Buffer/Storage Registers
Shift Registers
Pattern Generators

Datasheet Available:Texas Instruments SN74HC273N

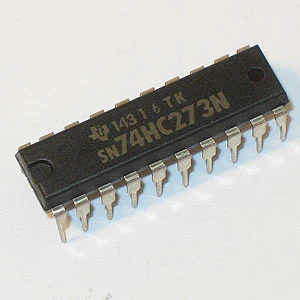

20 pin DIP. Manufactured by Texas Instruments.
