A10939 - SN74AS760N Octal Buffer/Line Driver (TI)

These octal buffers and line drivers are designed specifically to improve both the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters by eliminating the need for 3-state overlap protection. The SN74AS760N is characterized for operation from 0?C to 70?C.

Features:
Open-Collector Outputs Drive Bus Lines or Buffer Memory Address Registers
Eliminates the Need for 3-State Overlap Protection
PNP Inputs Reduce dc Loading
Open-Collector Versions of ?ALS244 and ?AS244

Datasheet Available:Texas Instruments SN74AS760N

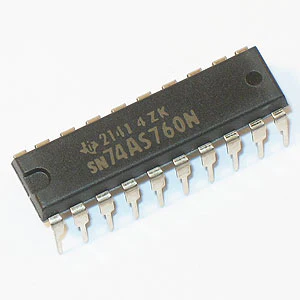

20 pin DIP. Manufactured by Texas Instruments.
A10939
