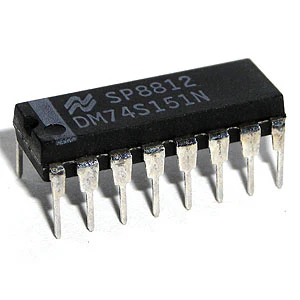

SOLD OUT! A11089 - DM74S151N Data Selector/Multiplexer (National)

These monolithic data selectors/multiplexers contain full on-chip binary decoding to select the desired data source. The DM74S151N selects one-of-eight data sources. They have a strobe input which must be at a low logic level to enable these devices. A high level at the strobe forces the W output high, and the Y output (as applicable) low. The DM74S151N feature complementary W and Y outputs.

Features:
Others Select One-of-Eight Data Sources
All Perform Parallel-to-Serial Conversion
All Permit Multiplexing from N Lines to One Line
Also For Use as Boolean Function Generator
Input-Clamping Diodes Simplify System Design
Fully Compatible with Most TTL Circuits

16 pin DIP. Manufactured by National.
A11089
