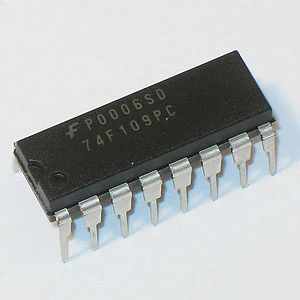

A20002 - 74F109PC Dual JK Pos. Edge-Triggered Flip-Flop (Fairchild)
The 74F109PC consists of two high-speed, completely independent transition clocked JK flip-flops. The clocking operation is independent of rise and fall times of the clock waveform. The JK design allows operation as a D-type flip-flop (refer to F74 data sheet) by connecting the J and K inputs.
Asynchronous Inputs:
LOW input to SD sets Q to HIGH level
LOW input to CD sets Q to LOW level
Clear and Set are independent of clock
Simultaneous LOW on CD and SD makes both Q and Q HIGH
Datasheet Available:Fairchild 74F109PC
16 pin DIP. Manufactured by Fairchild.
A20002
Asynchronous Inputs:
LOW input to SD sets Q to HIGH level
LOW input to CD sets Q to LOW level
Clear and Set are independent of clock
Simultaneous LOW on CD and SD makes both Q and Q HIGH
Datasheet Available:Fairchild 74F109PC
16 pin DIP. Manufactured by Fairchild.
A20002
$0.13
Original: $0.36
-64%A20002 - 74F109PC Dual JK Pos. Edge-Triggered Flip-Flop (Fairchild)—
