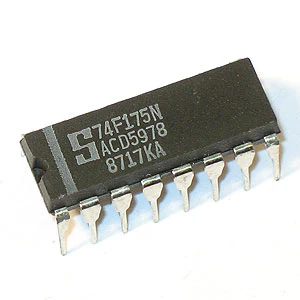

A20003 - 74F175N Quad D-Type Flip-Flop with Clear (Signetics)

This positive-edge-triggered flip-flop utilizes TTL circuitry to implement D-type flip-flop logic with a direct clear (CLR) input. Information at the data (D) inputs meeting setup-time requirements is transferred to outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When the clock (CLK) input is at either the high or low level, the D-input signal has no effect at the output.

Features:
Contains Four Flip-Flops With Double-Rail Outputs
Buffered Clock and Direct Clear Inputs

Applications:
Buffer/Storage Registers
Shift Registers
Pattern Generators

16 pin DIP. Manufactured by Signetics.
