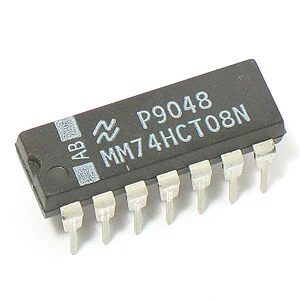

A20049 - MM74HCT08N Quad 2-Input AND Gate (National)

The MM74HCT08N is a logic function fabricated by using advanced silicon-gate CMOS technology which provides the inherent benefits of CMOS?low quiescent power and wide power supply range. This device is input and output characteristic and pinout compatible with standard 74LS logic families. All inputs are protected from static discharge damage by internal diodes to VCC and ground. MM74HCT08N devices are intended to interface between TTL and NMOS components and standard CMOS devices. These parts are also plug-in replacements for LS-TTL devices and can be used to reduce power consumption in existing designs.

Features:
TTL, LS pin-out and threshold compatible
Fast switching: tPLH, tPHL = 12 ns (typ)
Low power: 10 ?W at DC
High fan-out, 10 LS-TTL loads

14 pin DIP. Manufactured by National.
A20049
