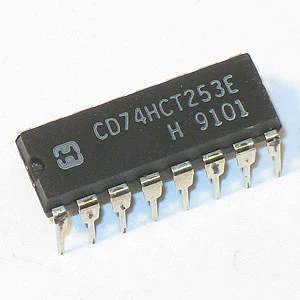

A20131 - CD74HCT253E CMOS Logic Dual 4-Input Multiplexer (Harris)
The CD74HCT253E is a dual 4-to-1 line selector/multiplexer having three-state outputs. One of four sources for each section is selected by the common select inputs, S0 and S1. When the output enable (1OE, 2OE) is HIGH, the output is in the high-impedance state.
Features:
Common Select Inputs
Separate Output-Enable Inputs
Three-State Outputs
Fanout (Over Temperature Range):
- Standard Outputs . . . 10 LSTTL Loads
- Bus Driver Outputs . . .15 LSTTL Loads
Wide Operating Temperature Range . . . -55°C to 125°C
Balanced Propagation Delay and Transition Times
Significant Power Reduction Compared to LSTTL Logic ICs
4.5V to 5.5V Operation
Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH = 2V (Min)
CMOS Input Compatibility, Il = 1?A at VOL, VOH
16 pin DIP. Manufactured by Harris.
A20131
Features:
Common Select Inputs
Separate Output-Enable Inputs
Three-State Outputs
Fanout (Over Temperature Range):
- Standard Outputs . . . 10 LSTTL Loads
- Bus Driver Outputs . . .15 LSTTL Loads
Wide Operating Temperature Range . . . -55°C to 125°C
Balanced Propagation Delay and Transition Times
Significant Power Reduction Compared to LSTTL Logic ICs
4.5V to 5.5V Operation
Direct LSTTL Input Logic Compatibility, VIL= 0.8V (Max), VIH = 2V (Min)
CMOS Input Compatibility, Il = 1?A at VOL, VOH
16 pin DIP. Manufactured by Harris.
A20131
$0.10
Original: $0.29
-66%A20131 - CD74HCT253E CMOS Logic Dual 4-Input Multiplexer (Harris)—
$0.29
$0.10
Description
The CD74HCT253E is a dual 4-to-1 line selector/multiplexer having three-state outputs. One of four sources for each section is selected by the common select inputs, S0 and S1. When the output enable (1OE, 2OE) is HIGH, the output is in the high-impedance state.
