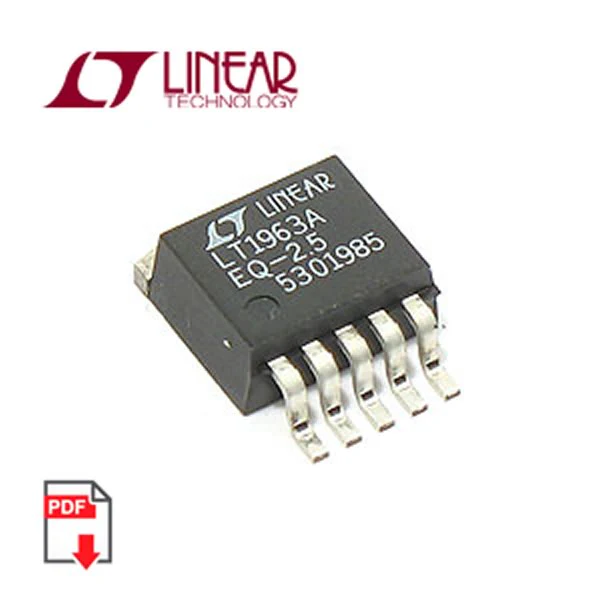

A20212A - (Pkg 5) LT1963AEQ-2.5 SMD Low Noise LDO Regulator (Linear Tech)
The LT1963AEQ-2.5 is a low dropout regulator optimized for fast transient response. These devices are capable of supplying 1.5A of output current with a dropout voltage of 340mV. Operating quiescent current is 1mA, dropping to <1A in shutdown. Quiescent current is well controlled; it does not rise in dropout as it does with many other regulators. In addition to fast transient response, the LT1963AEQ-2.5 regulators have very low output noise which makes them ideal for sensitive RF supply applications.
Features:
Optimized for Fast Transient Response
Output Current: 1.5A
Dropout Voltage: 340mV
Low Noise: 40VRMS (10Hz to 100kHz)
1mA Quiescent Current
No Protection Diodes Needed
Controlled Quiescent Current in Dropout
<1A Quiescent Current in Shutdown
Reverse Battery Protection
No Reverse Current
Thermal Limiting
Applications:
3.3V to 2.5V Logic Power Supplies
Post Regulator for Switching Supplies
5-Lead Plastic DD-PAK package. Manufactured by Linear Technologies.
Sold in a package of 5.
Features:
Optimized for Fast Transient Response
Output Current: 1.5A
Dropout Voltage: 340mV
Low Noise: 40VRMS (10Hz to 100kHz)
1mA Quiescent Current
No Protection Diodes Needed
Controlled Quiescent Current in Dropout
<1A Quiescent Current in Shutdown
Reverse Battery Protection
No Reverse Current
Thermal Limiting
Applications:
3.3V to 2.5V Logic Power Supplies
Post Regulator for Switching Supplies
5-Lead Plastic DD-PAK package. Manufactured by Linear Technologies.
Sold in a package of 5.
