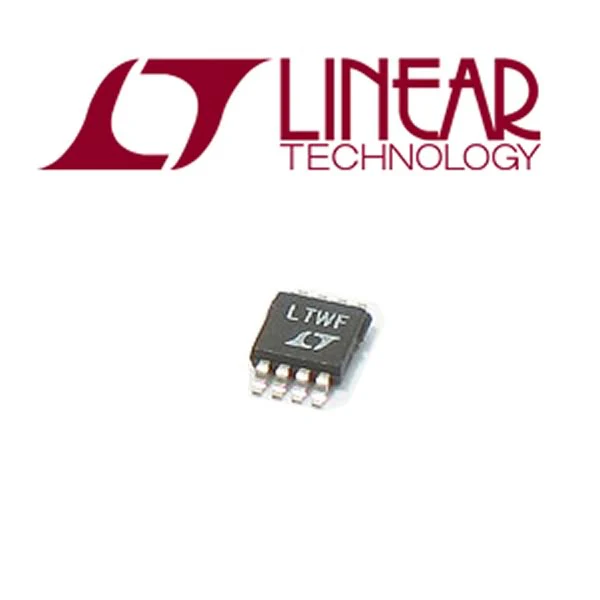

A20247SA - (Pkg 5) LT1767EMS8-5 SMD 1.5A 1.25MHz Switching Regulator (Linear)

The LT1767EMS8-5 is a 1.25MHz monolithic buck switching regulator. A high efficiency 1.5A, 0.22W switch is included on the die together with all the control circuitry required to complete a high frequency, current mode switching regulator. Current mode control provides fast transient response and excellent loop stability. New design techniques achieve high efficiency at high switching frequencies over a wide operating range. A low dropout internal regulator maintains consistent performance over a wide range of inputs from 24V systems to LiIon batteries. An operating supply current of 1mA improves efficiency, especially at lower output currents. Shutdown reduces quiescent current to 6mA. Maximum switch current remains constant at all duty cycles. Synchronization allows an external logic level signal to increase the internal oscillator from 1.4MHz to 2MHz.
Full cycle-by-cycle short-circuit protection and thermal shutdown are provided. High frequency operation allows the reduction of input and output filtering components and permits the use of chip inductors.

Features:
1.5A Switch in a Small MSOP Package
Constant 1.25MHz Switching Frequency
Wide Operating Voltage Range: 3V to 25V
High Efficiency 0.22W Switch
1.2V Feedback Reference Voltage
Fixed Output Voltages of 1.8V, 2.5V, 3.3V, 5V
2% Overall Output Tolerance
Uses Low Profile Surface Mount Components
Low Shutdown Current: 6mA
Synchronizable to 2MHz
Current Mode Loop Control
Constant Maximum Switch Current Rating at All Duty Cycles

Applications:
DSL Modems
Portable Computers
Wall Adapters
Battery-Powered Systems
Distributed Power

MSOP-8 package. Manufactured by Linear Technology.
Sold in a package of 5.
