A20340 - MC10H125P Quad ECL to TTL Translator (On Semi)

The MC10H125P is a quad translator for interfacing data and control signals between the MECL section and saturated logic section of digital systems. The 10H part is a functional/pinout duplication of the standard MECL 10K family part, with 100% improvement in propagation delay, and no increase in power-supply current. Outputs of unused translators will go to low state when their inputs are left open.

Features:
Propagation Delay, 2.5 ns Typical
Voltage Compensated
Improved Noise Margin 150 mV (Over Operating Voltage and Temperature Range)
MECL 10K Compatible

Datasheet Available:On Semiconductor MC10H125P

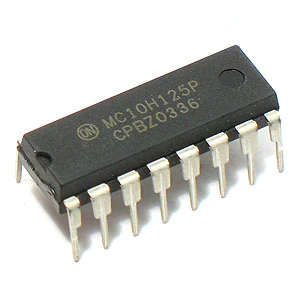

16 pin DIP. Manufactured by On Semiconductor.
A20340
