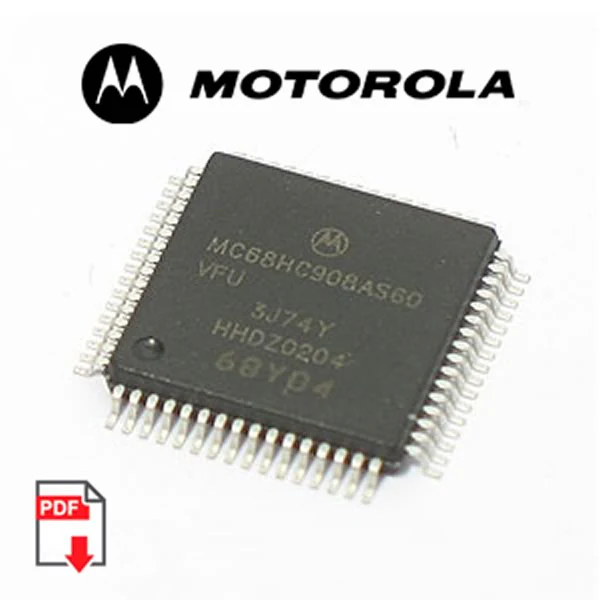

A20423 - MC68HC908AS60 HCMOS Microcontroller Unit (Motorola)
The MC68HC908AS60 is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCU) and is based on the customer-specified integrated circuit (CSIC) design strategy.
Features:
8.4-MHz internal bus frequency
60 Kbytes of FLASH electrically erasable read-only memory (FLASH)
FLASH data security(1)
1 Kbyte of on-chip electrically erasable programmable read-onlymemory (EEPROM) with security option
2 Kbytes of on-chip random-access memory (RAM)
Clock generator module (CGM)
Serial peripheral interface module (SPI)
64 pin QFP package. Manufactured by Motorola.
A20423
Features:
8.4-MHz internal bus frequency
60 Kbytes of FLASH electrically erasable read-only memory (FLASH)
FLASH data security(1)
1 Kbyte of on-chip electrically erasable programmable read-onlymemory (EEPROM) with security option
2 Kbytes of on-chip random-access memory (RAM)
Clock generator module (CGM)
Serial peripheral interface module (SPI)
64 pin QFP package. Manufactured by Motorola.
A20423
| ?Additional Resources |
 |
$4.87
A20423 - MC68HC908AS60 HCMOS Microcontroller Unit (Motorola)—
$4.87
Description
The MC68HC908AS60 is a member of the low-cost, high-performance M68HC08 Family of 8-bit microcontroller units (MCU) and is based on the customer-specified integrated circuit (CSIC) design strategy.
Features:
8.4-MHz internal bus frequency
60 Kbytes of FLASH electrically erasable read-only memory (FLASH)
FLASH data security(1)
1 Kbyte of on-chip electrically erasable programmable read-onlymemory (EEPROM) with security option
2 Kbytes of on-chip random-access memory (RAM)
Clock generator module (CGM)
Serial peripheral interface module (SPI)
64 pin QFP package. Manufactured by Motorola.
A20423
Features:
8.4-MHz internal bus frequency
60 Kbytes of FLASH electrically erasable read-only memory (FLASH)
FLASH data security(1)
1 Kbyte of on-chip electrically erasable programmable read-onlymemory (EEPROM) with security option
2 Kbytes of on-chip random-access memory (RAM)
Clock generator module (CGM)
Serial peripheral interface module (SPI)
64 pin QFP package. Manufactured by Motorola.
A20423
