G24148A ` (Pkg 6) KOA 33uH 10% SMD 2.40A Power Inductor, Type LPC12065

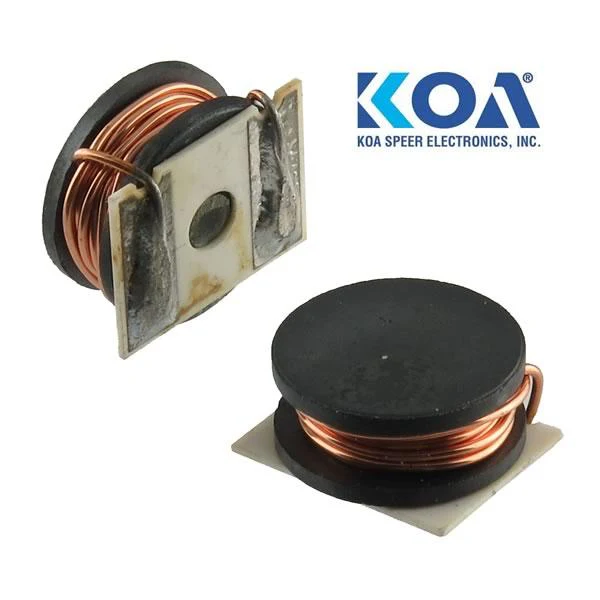

LPC 12065 Series 33uH ±10% tolerance SMD fixed inductor (unshielded) from KOA Speer features a Ferrite core, enameled copper wire windings and a ceramic substrate. Size is 0.472" (12.0 mm) diameter x 0.295" (7.5 mm) T. Maximum allowable DC current is 2.40A. Quality Factor Q of 20 (min) at 2.52 MHz. Minimum Self-Resonant Frequency is 7.5 MHz, and DC resistance is 0.093? (max). On tape and reel. Part# LPC12065TED330K. Sold in a package of 6.
Original: $6.00
-65%$6.00
$2.10
Description
LPC 12065 Series 33uH ±10% tolerance SMD fixed inductor (unshielded) from KOA Speer features a Ferrite core, enameled copper wire windings and a ceramic substrate. Size is 0.472" (12.0 mm) diameter x 0.295" (7.5 mm) T. Maximum allowable DC current is 2.40A. Quality Factor Q of 20 (min) at 2.52 MHz. Minimum Self-Resonant Frequency is 7.5 MHz, and DC resistance is 0.093? (max). On tape and reel. Part# LPC12065TED330K. Sold in a package of 6.
