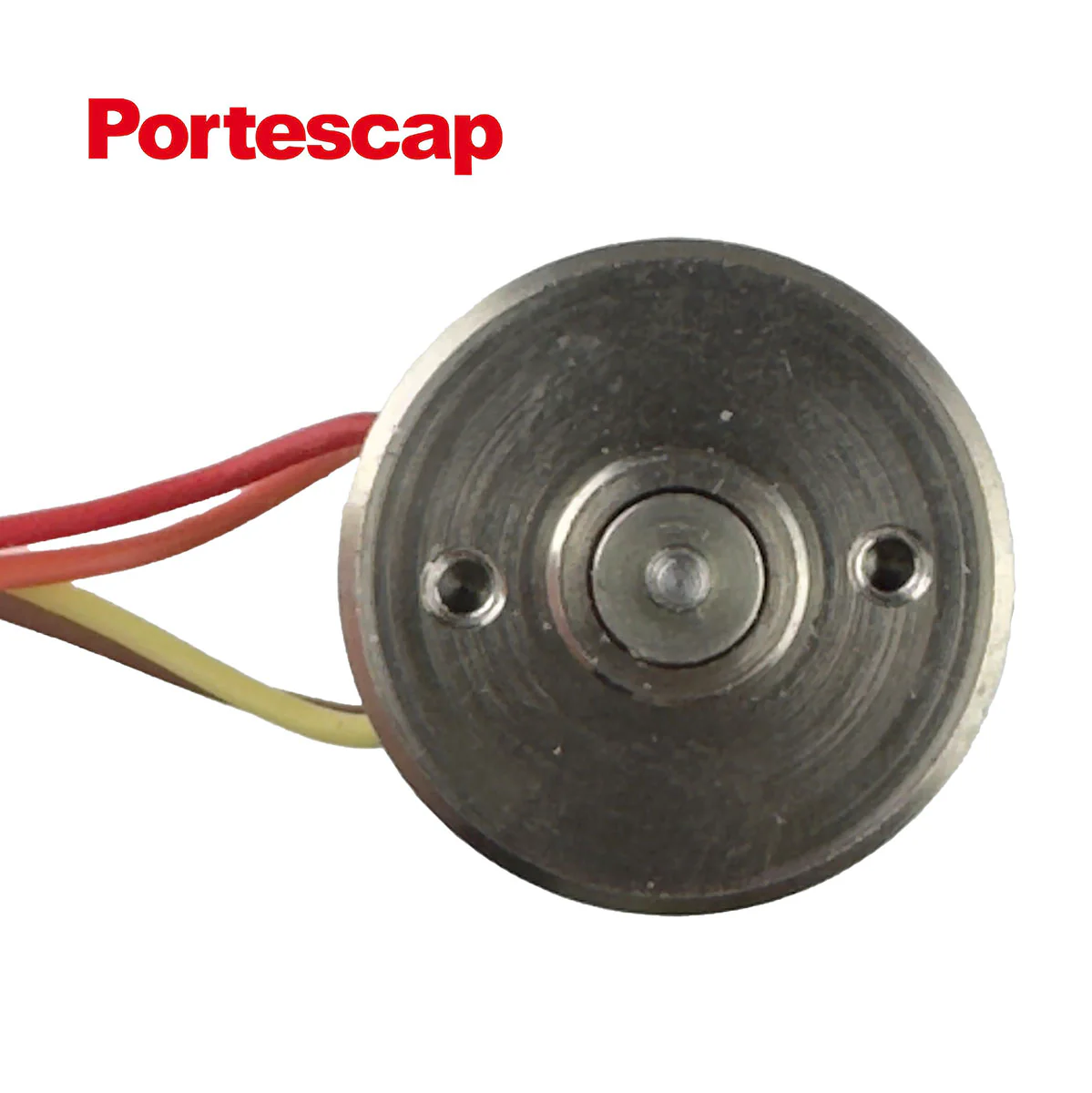

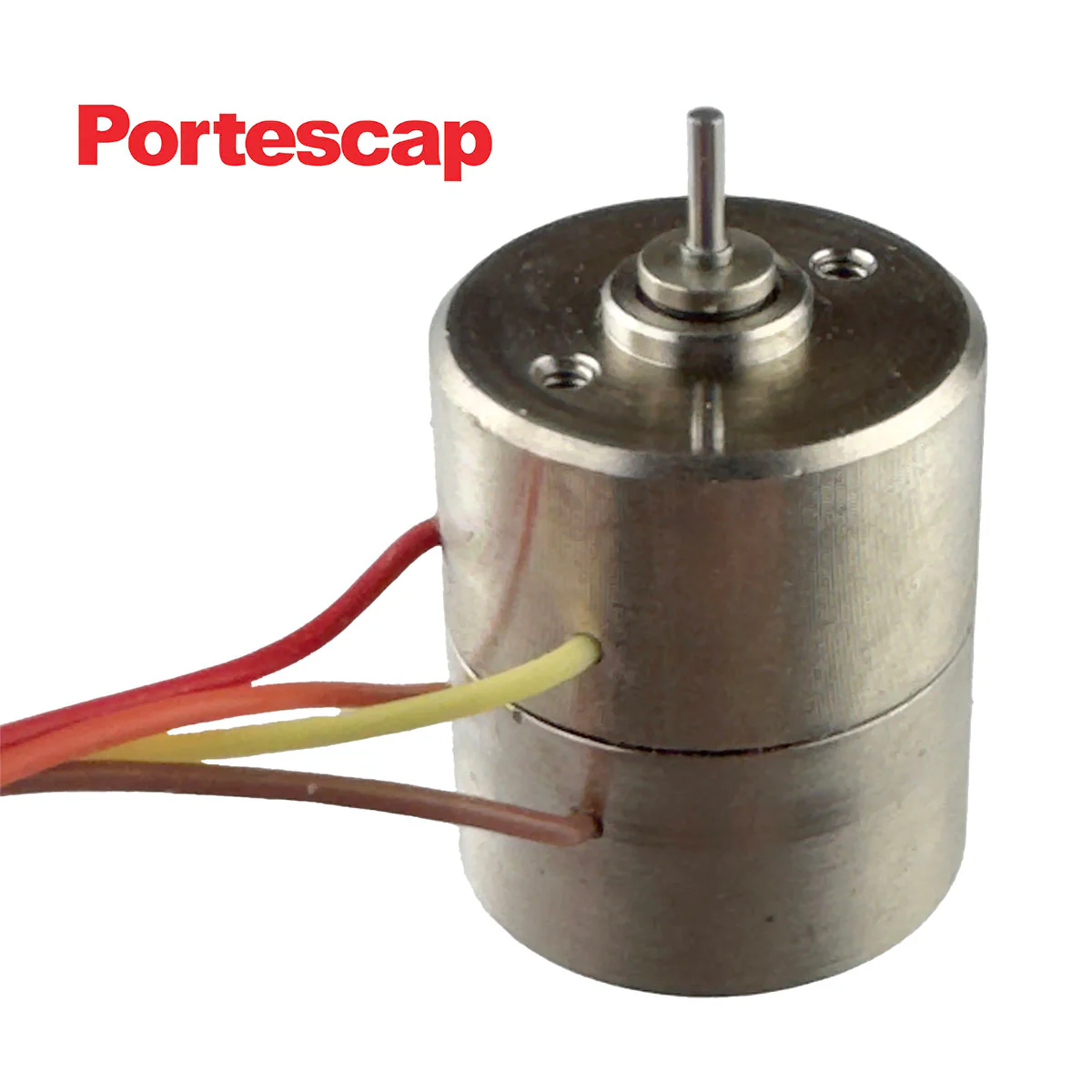

G28289 ` Portescap Disc Magnet Stepper Motor P110-064-015.08
Sleeve bearing 24 steps per revolution (15° step angle) disc magnet stepper motor with 4 wires. Features 15 Ohm resistance per phase, 12mH inductance per phase. Spec sheet shows Torque vs Speed of 0.75 oz-in 1000RPM with motor operated at 24V, 47 Ohm series resistor. Nominal Phase Current (2 ph. ON) is 0.25A. Nominal Phase Current (1 ph. ON) 0.35A. Back EMF Amplitude is 5.20 V/kstep/s. Weight is 23g. Size of shaft is 1mm diameter x 4mm long. Body of motor is 16mm diameter x 19mm long. Brand new prime Portescap stepper motor. These retail for over $125 each!
Description
Sleeve bearing 24 steps per revolution (15° step angle) disc magnet stepper motor with 4 wires. Features 15 Ohm resistance per phase, 12mH inductance per phase. Spec sheet shows Torque vs Speed of 0.75 oz-in 1000RPM with motor operated at 24V, 47 Ohm series resistor. Nominal Phase Current (2 ph. ON) is 0.25A. Nominal Phase Current (1 ph. ON) 0.35A. Back EMF Amplitude is 5.20 V/kstep/s. Weight is 23g. Size of shaft is 1mm diameter x 4mm long. Body of motor is 16mm diameter x 19mm long. Brand new prime Portescap stepper motor. These retail for over $125 each!
