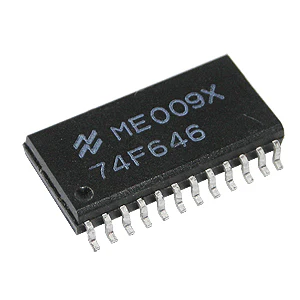

G382S - 74F646 SMD IC Octal Transceiver/Register (National)

These devices consist of bus transceiver circuits with TRISTATE, D-type flip-flops, and control circuitry arranged for multiplexed transmission of data directly from the input bus or from the internal registers. Data on the A or B bus will be clocked into the registers as the appropriate clock pin goes to a high logic level. Control G and direction pins are provided to control the transceiver function. In the transceiver mode, data present at the high impedance port may be stored in either the A or the B register or in both. The select controls can be multiplex stored and real-time (transparent mode) data. The direction control determines which bus will receive data when the enable control G is Active LOW. In the isolation mode (control G HIGH), A data may be stored in the B register and/or B data may be stored in the A register.

Independent registers for A and B buses
Multiplexed real-time and stored data
Non-inverting data paths
TRI-STATE outputs
Guaranteed 4000V minimum ESD protection

Datasheet Available:National 74F646

SOIC 24 package. Manufactured by National.
G382S
