A10945 - SN74ALS273N D-Type Positive-Edge-Triggered Flip-Flop (TI)

These octal positive-edge-triggered flip-flops utilize TTL circuitry to implement D-type flip-flop logic with a direct-clear input. Information at the data (D) inputs meeting the setup-time requirements is transferred to the Q outputs on the positive-going edge of the clock (CLK) pulse. Clock triggering occurs at a particular voltage level and is not directly related to the transition time of the positive-going pulse. When CLK is at either the high or low level, the D input signal has no effect at the output. The SN74ALS273N is characterized for operation from 0?C to 70?C.

Features:
Contain Eight Flip-Flops With Single-Rail Outputs
Buffered Clock and Direct-Clear Inputs
Individual Data Input to Each Flip-Flop

Applications:
Buffer/Storage Registers
Shift Registers
Pattern Generators

Datasheet Available:Texas Instruments SN74ALS273N

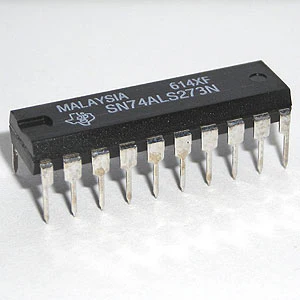

20 pin DIP. Manufactured by Texas Instruments.
