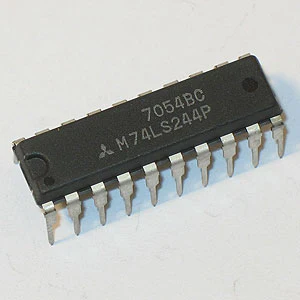

A20102 - M74LS244P Octal Buffer/Line Driver/Receiver (Mitsubishi)
These buffers/line drivers are designed to improve both the performance and PC board density of TRI-STATE buffers/drivers employed as memory-address drivers, clock drivers, and bus-oriented transmitters/receivers. Featuring 400 mV of hysteresis at each low current PNP data line input, they provide improved noise rejection and high fanout outputs and can be used to drive terminated lines down to 133 Ohm.
Features:
TRI-STATE outputs drive bus lines directly
PNP inputs reduce DC loading on bus lines
Hysteresis at data inputs improves noise margins
Typical IOL (sink current): 24 mA
Typical IOH (source current): 15 mA
Typical propagation delay times:
-Inverting 10.5 ns
-Noninverting 12 ns
Typical enable/disable time 18 ns
Typical power dissipation (enabled):
-Inverting 130 mW
-Noninverting 135 mW
20 pin DIP. Manufactured by Mitsubishi.
A20102
Features:
TRI-STATE outputs drive bus lines directly
PNP inputs reduce DC loading on bus lines
Hysteresis at data inputs improves noise margins
Typical IOL (sink current): 24 mA
Typical IOH (source current): 15 mA
Typical propagation delay times:
-Inverting 10.5 ns
-Noninverting 12 ns
Typical enable/disable time 18 ns
Typical power dissipation (enabled):
-Inverting 130 mW
-Noninverting 135 mW
20 pin DIP. Manufactured by Mitsubishi.
A20102
$0.14
Original: $0.39
-64%A20102 - M74LS244P Octal Buffer/Line Driver/Receiver (Mitsubishi)—
$0.39
$0.14
Description
These buffers/line drivers are designed to improve both the performance and PC board density of TRI-STATE buffers/drivers employed as memory-address drivers, clock drivers, and bus-oriented transmitters/receivers. Featuring 400 mV of hysteresis at each low current PNP data line input, they provide improved noise rejection and high fanout outputs and can be used to drive terminated lines down to 133 Ohm.
Features:
TRI-STATE outputs drive bus lines directly
PNP inputs reduce DC loading on bus lines
Hysteresis at data inputs improves noise margins
Typical IOL (sink current): 24 mA
Typical IOH (source current): 15 mA
Typical propagation delay times:
-Inverting 10.5 ns
-Noninverting 12 ns
Typical enable/disable time 18 ns
Typical power dissipation (enabled):
-Inverting 130 mW
-Noninverting 135 mW
20 pin DIP. Manufactured by Mitsubishi.
A20102
Features:
TRI-STATE outputs drive bus lines directly
PNP inputs reduce DC loading on bus lines
Hysteresis at data inputs improves noise margins
Typical IOL (sink current): 24 mA
Typical IOH (source current): 15 mA
Typical propagation delay times:
-Inverting 10.5 ns
-Noninverting 12 ns
Typical enable/disable time 18 ns
Typical power dissipation (enabled):
-Inverting 130 mW
-Noninverting 135 mW
20 pin DIP. Manufactured by Mitsubishi.
A20102
