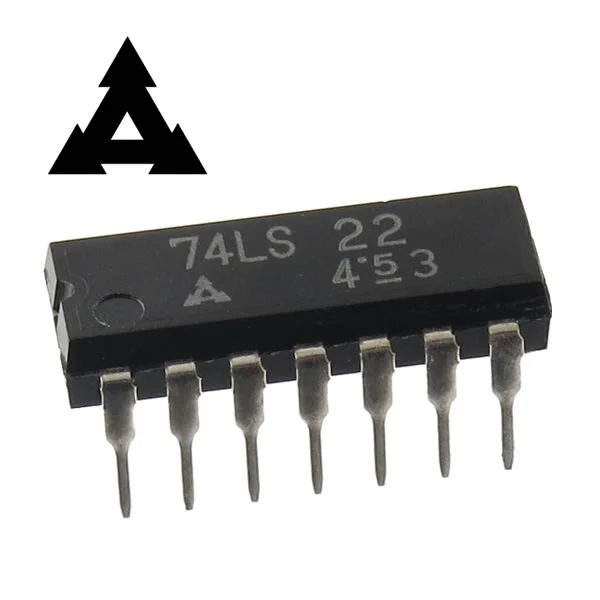

G26375A - (Pkg 4) Panasonic/Matsushita 74LS22 Dual 4 Input Positive NAND Gates with Open Collector Outputs
G26375A - (Pkg 4) Panasonic/Matsushita 74LS22 Dual 4 Input Positive NAND Gates with Open Collector Outputs
74LS22 dual 4 input positive NAND gates with open collector outputs. These devices contain two independent 4-input NAND gates. The open-collector outputs require pull-up resistors to perform correctly. They may be connected to other-collector outputs to implement active low wired-OR or active-high wired-AND functions. 14 Pin through-hole. Original Matsushita Panasonic Part - New! Sold in a package of 4.
Original: $5.96
-65%$5.96
$2.09
Description
74LS22 dual 4 input positive NAND gates with open collector outputs. These devices contain two independent 4-input NAND gates. The open-collector outputs require pull-up resistors to perform correctly. They may be connected to other-collector outputs to implement active low wired-OR or active-high wired-AND functions. 14 Pin through-hole. Original Matsushita Panasonic Part - New! Sold in a package of 4.
