G4956A - 74LS352 Dual Data Selector/Multiplexer
Each of these Schottky-clamped data selectors/multiplexers contains inverters and drivers to supply fully complementary, on-chip, binary decoding data selection to the AND-0R-invert gates. Separate strobe inputs are provided for each of the two four-line sections.
Features:
Schottky-Diode-Clamped Transistors
Permits Multiplexing from N lines to 1 line
Performs Parallel-to-Serial Conversion
Fully Compatible with most TTL Circuits
Low Power Dissipation 31 mW Typical (Enabled)
Typical Average Propagation Delay Times:
-Data Input to Output 15 ns
-Strobe Input to Output 19 ns
Select Input to Output 22 ns

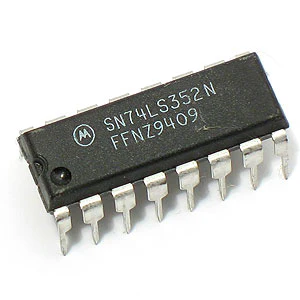

16 pin DIP. Actual brand may vary from picture.
G4956A
Features:
Schottky-Diode-Clamped Transistors
Permits Multiplexing from N lines to 1 line
Performs Parallel-to-Serial Conversion
Fully Compatible with most TTL Circuits
Low Power Dissipation 31 mW Typical (Enabled)
Typical Average Propagation Delay Times:
-Data Input to Output 15 ns
-Strobe Input to Output 19 ns
Select Input to Output 22 ns
16 pin DIP. Actual brand may vary from picture.
G4956A
$0.35
Original: $1.00
-65%G4956A - 74LS352 Dual Data Selector/Multiplexer—
$1.00
$0.35
